L100 (100mm Liquid Filled Pressure Gauge, lower mount)
Shop the L100 pressure gauge with 304 stainless steel case, liquid fill, and dual kPa/psi scale. Ideal for industrial applications, HVAC systems, and heavy-duty equipment, featuring a 100mm dial and BSPT connection for precise pressure measurement.
$0.00
Bulk deal
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | $0.00 |
| 11 - 15 | $10.00 | $0.00 |
| 16 - 20 | $15.00 | $0.00 |
0
People watching this product now!
Payment Methods:
Description

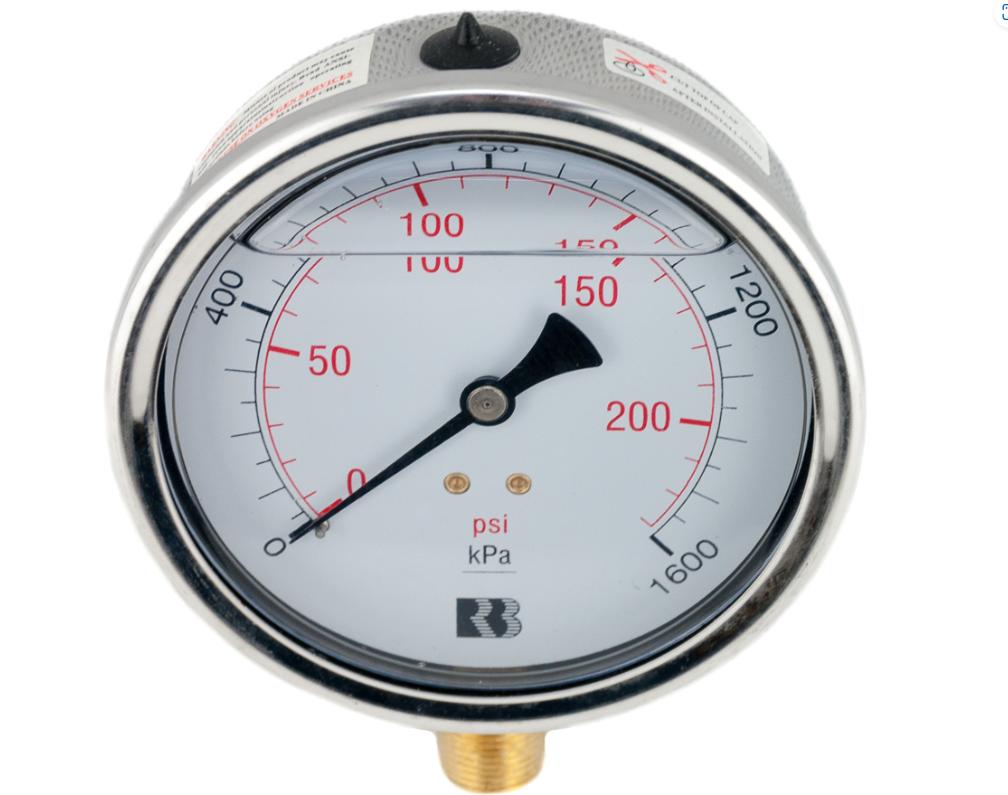

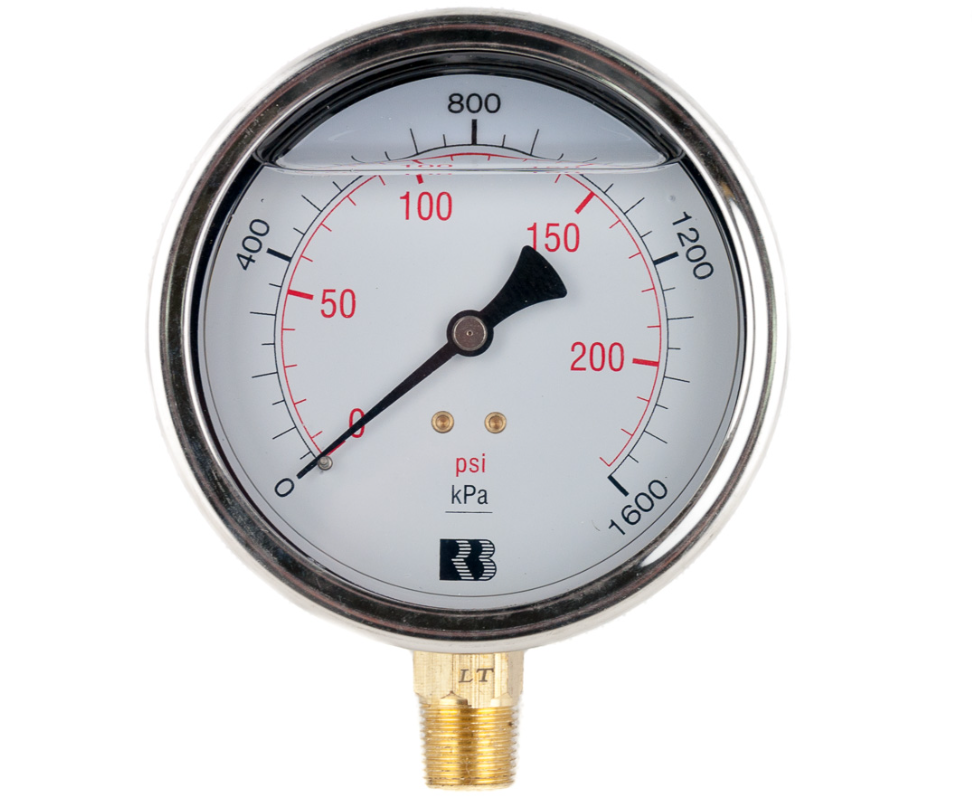

The L100 (Model 411) Pressure Gauge features a 100mm dial with a 304 stainless steel case, brass bourdon tube and connection, and a polycarbonate window. It offers a dual scale (kPa/psi) and has a ⅜” BSPT lower mount. The gauge is liquid-filled and has an accuracy of ±2.5% of full scale.
The pressure ranges start from -100/0 kPa to 0/4,000 kPa (refer to the data sheet for all available ranges).
Technical Specifications
| Brand | Ross Brown |
| Model | L63 / 411 |
| Type | Pressure Gauge |
| Working Temperature | Up to 60 Degree C (use pigtail for higher temps) |
| Dial Size | 100mm |
| Dial Label | Black Print (kPa), Red Print (PSI) on White Background |
| Ranges | -100-0kPa to 0-40,000kPa |
| Connection | 3/8″ BSPT (Lower or Back Mount) |
| Accuracy | +/- 2.5% |
Material Specifications
| Case & Bezel | 304 Stainless Steel |
| Connection | Copper Alloy |
| Window | Polycarbonate |
