Model 1410 Load Cell for Rotary Filling Machines
The Tedea-Huntleigh Model 1410 Load Cell is a high-speed, vibration-resistant load cell designed for rotary filling machines & automated weighing systems. With fast settling time, FM approval & side-load resistance, it’s perfect for bottling, packaging & dynamic production lines with minimal error.
Price range: $270.41 through $918.17
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | - |
| 11 - 15 | $10.00 | - |
| 16 - 20 | $15.00 | - |
Payment Methods:
Description
Title :- Model 1410 Load Cell for Rotary Filling Machines
Brand :- Tedea-Huntleigh
DESCRIPTION
Model 1410 represents a radical new concept in load cell design, which alleviates many of the problems encountered when conventional load cells are used in rotary weighing machines.
Due to a patented damping system, typical settling times of 700 ms are dramatically reduced to less than 300 ms (depending on conditions), significantly reducing cycle times and increasing throughput capabilities.
Centrifugal forces are handled in such away that their effect on output is very small. For example, when tested up to 20 rpm, the total dynamic error amounted to less
than 0.2 gram per kg.
Model 1410 provides excellent isolation of base vibrations. Both these features enable the use of higher machine speeds without losing accuracy.
Model 1410’s unique rugged construction makes it very resistant to side loads and can therefore withstand bottle jams and other mishaps.
FEATURES
• The first and only load cell specifically designed for
use in rotary filling machines
• Short settling times
• High resistance to side loads
• Effective isolation of base vibrations
• Centrifugal forces do not affect accuracy

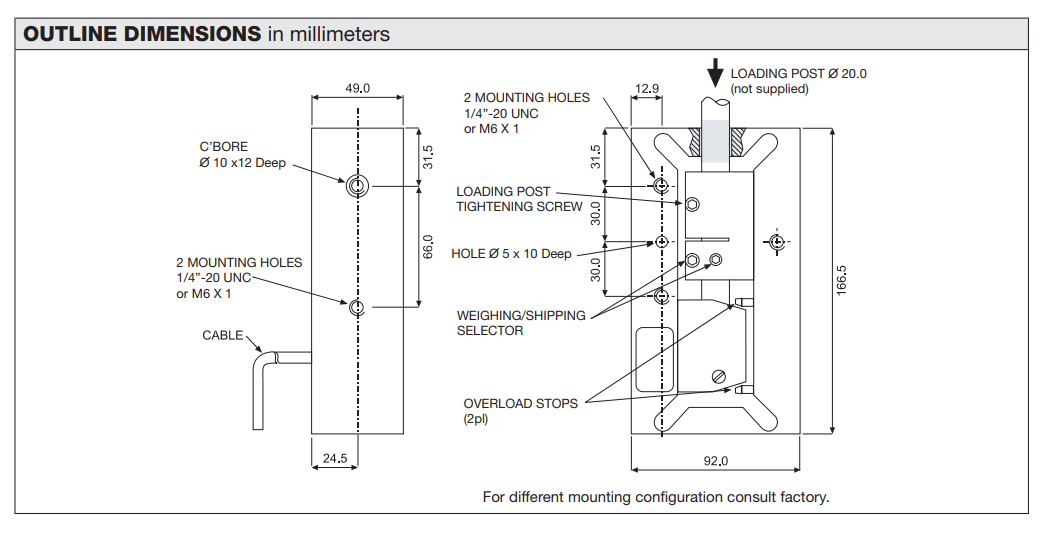

• Two mounting options
• Optional:
– FM approval available
APPLICATIONS
• Rotary filling machines
