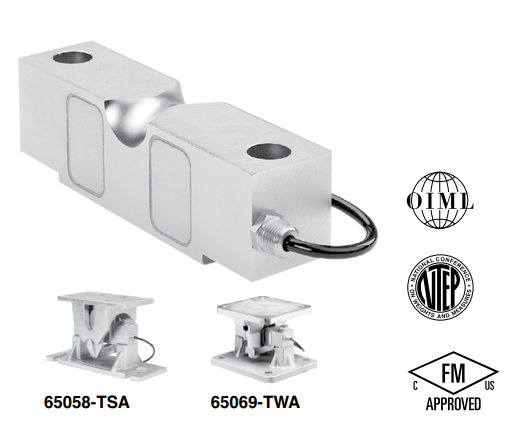

Model 65058 Double-Ended Shear Beam Load Cell
The Sensortronics Model 65058S Double-Ended Shear Beam Load Cell is a high-capacity (15k–125k lbs), stainless steel load cell with IP68 & IP69K sealing for harsh environments. NTEP & FM approved, it’s ideal for food, chemical, pharma processing, tank weighing & batching systems with matched outputs for multi-cell systems.
Price range: $171.08 through $350.06
| Quantity | Discount | Discounted price |
| 5 - 10 | $5.00 | - |
| 11 - 15 | $10.00 | - |
| 16 - 20 | $15.00 | - |
Payment Methods:
Description
Title :- Model 65058 Double-Ended Shear Beam Load Cell
Brand :- Sensortronics
DESCRIPTION
The Model 65058 is a mid to high capacity, nickel-plated alloy steel, double ended Shear beam load cell.
This product is designed for use in certified truck and rail scales and is available in capacities ranging from 10,000 to 250,000 lbs.
This load cell is rated intrinsically safe by the Factory Mutual System (FM); making it suitable for use in potentially explosive environments.
This load cell is certified for legal for trade applications by both American NTEP and International OIML standards.
FEATURES
• Rated capacities of 10,000 to 225,000 lbs
• Center-link loaded
• Integral conduit adaptor
• Trade certified for NTEP Class IIIL: 10000 divisions;
Class III: 5000 divisions and OIML R60 3000 divisions
in 20,000 to 100,000 lbs range
• Sensorgage™ sealed to IP67 standards
• Factory Mutual System Approved for Classes I, II, III;
Divisions 1 and 2; Groups A through G.
Also, non-incendive ratings (No barriers!).
• Optional
– EDOC (Electrodeposited organic coating):
product appearance will differ from the photograph
due to coating
– 65058S stainless steel, welded seal version available
– 65058-TSA companion assemblies for vehicle scales
– 65069-TWA companion assemblies for vessel
weighing
APPLICATIONS
• Truck scales
• Railroad track scales
• Precision tank, bin and silo weighing
• Level and inventory monitoring
