Model 5203 Double-Ended Beam Load Cell
Explore the Model 5203 Double-Ended Beam Load Cell by Revere. Available in capacities from 1k to 75k lbs, featuring IP67 rating, nickel-plated steel, and FM certification. Perfect for silo weighing, tank weighing, hopper weighing , and low capacity vehicle scale applications.
$139.25
Note: Lead time varies from 6-8 weeks
Payment Methods:
Description
Title :- Model 5203 Double-Ended Beam Load Cell
Brand :- RevereÂ
DESCRIPTION

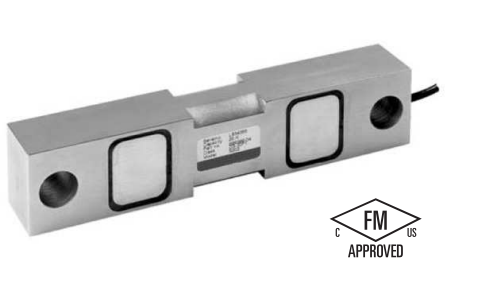

The Model 5203 is a double-ended shear beam type load cell.
A reliable sealing and mechanical protection of the strain gage area is ensured by the use of potting compound with a metal cover.
The center-loaded design results in minimal sensitivity to off-center forces.
FEATURES
• Capacities: 1k to 75k lbs
• Environmental protection: IP67 (DIN 40.050)
• Material: nickel-plated steel
• Center-loaded design
• Optional
– FM certified versions are available for use in
potentially explosive atmospheres
APPLICATIONS
• Silo, tank, hopper weighing
• Custom system designs
• Low capacity vehicle scales
